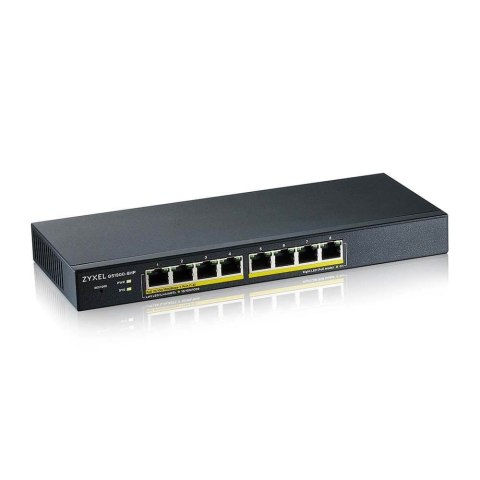

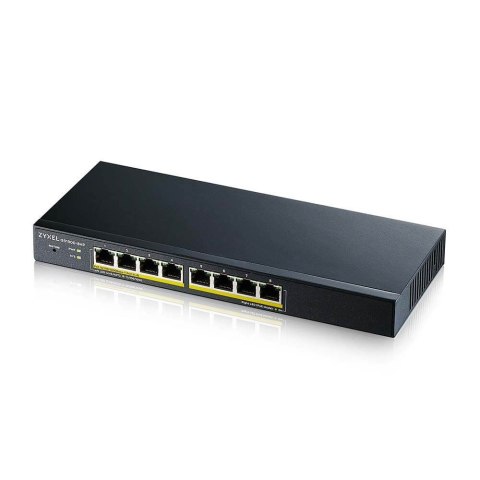

Zyxel Przełącznik GS1900-8HP GS1900-8HP-EU0103F

• IEEE 802.1Q VLAN tagging
• IEEE 802.3ad LACP
• Guest VLAN
• Voice VLAN
• Storm control
• IEEE 802.1p priority queues per port
• IEEE 802.1p Queuing method(SPQ/WRR)
• Input priority mapping
• Rate limiting per port(ingress/egress)
• IEEE 802.3x flow control

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab (1000BASE-T) Ethernet
• IEEE 802.3x flow control
• IEEE 802.3az EEE support
• IEEE 802.1p CoS support
• IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
• Store and forward
• Auto MDI/MID-X

• IEEE 802.1p class of service(SPQ, WRR)
• Port-based CoS
• IP TOS precedence

IPv6 Management:

• IPv6 over Ethernet (RFC 2464)
• Dual-stack (RFC 4213)
• ICMPv6 (RFC 4884)
• Neighbor discovery (RFC 4861)
• Auto configuration
• Static IPv6 address and prefix length
• Static IPv6 default gateway
• IPv6 duplicate address detection

Manageability:

• SNMP v1, v2, v3
• RMON (1, 2, 3, 9)
• ICMP echo/echo reply
• Syslog
• IEEE 802.1AB LLDP
• IEEE 802.1AB LLDP-MED
• LLDP-Power via MDI

Device Management:

• Web interface
• Remote firmware upgrade by Web
• Configuration saving and retrieving
• Firmware upgrade via SNMP
• DHCP client
• Daylight saving
• NTP
• Port mirroring
• Scheduled PoE
• PoE default consumption mode
• Time range group for scheduled PoE

MIB:

• RFC 1213 MIB II
• RFC 2819 RMON (group 1, 2, 3, 9)
• RFC 1215 generic traps
• RFC 1493 bridge
• Zyxel private common MIB

ZON Utility:

• Discovery of Zyxel switches, APs and gateways
• IP configuration
• IP renew
• Device factory reset
• Device reboot
• Device locating
• Web GUI access
• Password configuration
• One-click quick association with Zyxel AP Configurator (ZAC)
• Automatic detection of the latest firmware
• Displays device serial number and hardware version
• Cloud mode on/off option for Hybrid series devices

IGMP snooping (v1, v2, v3)

• 100 - 240 V AC, 50/60 Hz
• Maksymalny budżet PoE: 77W

250 x 104 x 27 mm

RoHS compliant
EMC:

• CE, FCC, RCM, Class A
• BSMI CNS 13438

Safety:

• LVD LVD EN 62368-1
• BSMI CNS 14336-1
